71917ACE/HCP4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢71917ACE/HCP4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對85mm×120mm×18mm 71917ACE/HCP4A軸承有什么疑問，請聯系我們獲取更多信息。
7196軸承 07087/07196軸承 JM719149軸承 47T271916軸承 4T-07087/07196軸承 4T-07098/07196軸承 4T-07096/07196軸承 7196軸承 4T-07100S/07196軸承 SB223719軸承
7196軸承 07087/07196軸承 JM719149軸承 47T271916軸承 4T-07087/07196軸承 4T-07098/07196軸承 4T-07096/07196軸承 7196軸承 4T-07100S/07196軸承 SB223719軸承
SKF71917ACE/HCP4A軸承_進口軸承
| 角接觸球軸承, 精密, ACE/HC, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 85 | 120 | 18 | 27,6 | 20,4 | 0,85 | 15000 | 24000 | 0,44 | 71917 ACE/HCP4A | - | |
推薦產品
我公司特價供應以下型號產品： 15100軸承 R156ZZS軸承 NUP340軸承 NUP2310ET軸承 15126/15250X軸承 AZK18024019軸承 CF24-1BUU軸承 7216軸承
我公司特價供應以下型號產品： 15100軸承 R156ZZS軸承 NUP340軸承 NUP2310ET軸承 15126/15250X軸承 AZK18024019軸承 CF24-1BUU軸承 7216軸承

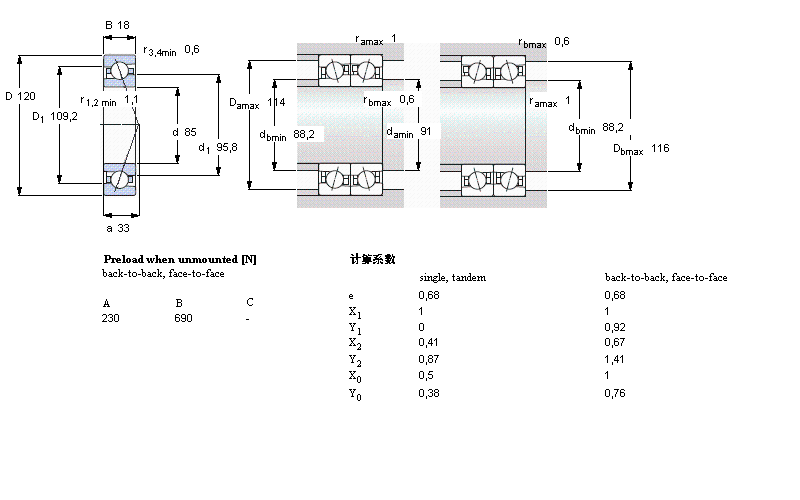

SKF軸承71917ACE/HCP4A樣本圖
