S7013FB/P7軸承，我司有部分庫存，您可致電銷售人員免費咨詢S7013FB/P7軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對65mm×100mm×18mm S7013FB/P7軸承有什么疑問，請聯系我們獲取更多信息。
CRBS708軸承 CRBS708AUU軸承 CRBS708V軸承 CRBS708VUU軸承
CRBS708軸承 CRBS708AUU軸承 CRBS708V軸承 CRBS708VUU軸承
SKFS7013FB/P7軸承_進口軸承
| 角接觸球軸承, 精密, S .. FB, sealed, contact angle 18° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 65 | 100 | 18 | 20,8 | 22 | 0,93 | 17000 | - | 0,45 | S7013 FB/P7 | - | |
推薦產品
我公司特價供應以下型號產品： RNAF253716軸承 6014ZZ軸承 6903NR軸承 6301ZZ軸承 413192軸承 NU221軸承 52308軸承 22213RHR軸承 30334軸承 YB1210軸承 63/32DD軸承
我公司特價供應以下型號產品： RNAF253716軸承 6014ZZ軸承 6903NR軸承 6301ZZ軸承 413192軸承 NU221軸承 52308軸承 22213RHR軸承 30334軸承 YB1210軸承 63/32DD軸承

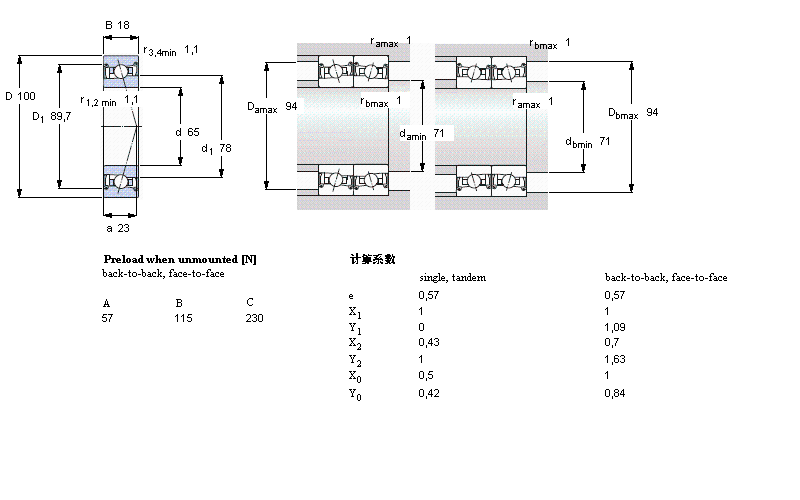

SKF軸承S7013FB/P7樣本圖
